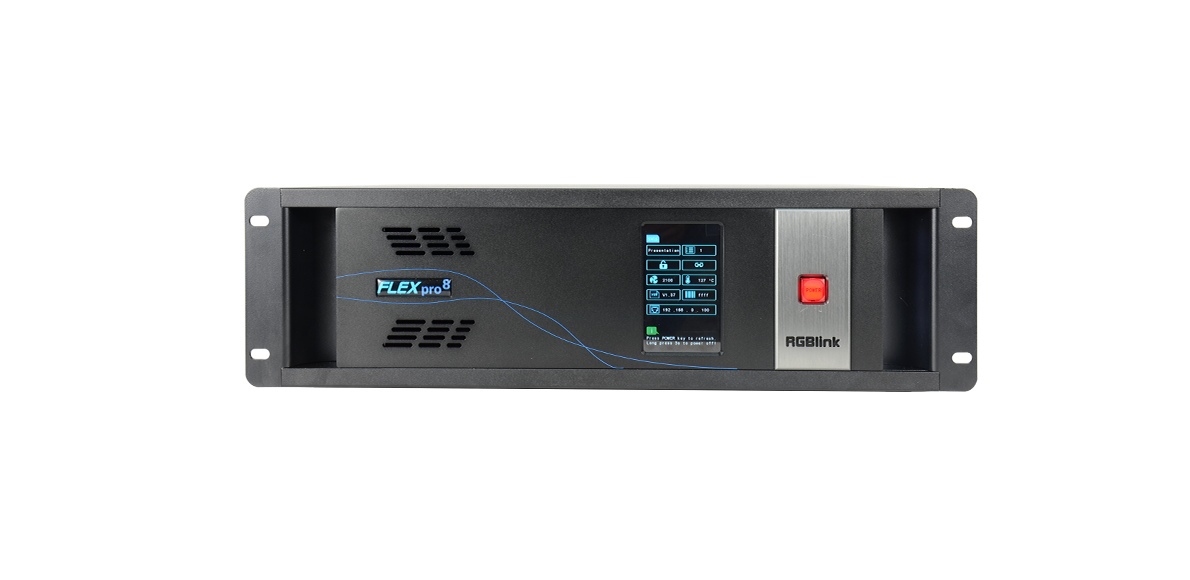

FLEXpro 8 Next generation flexible tiny module based Video Wall Presentation Switcher and Processor

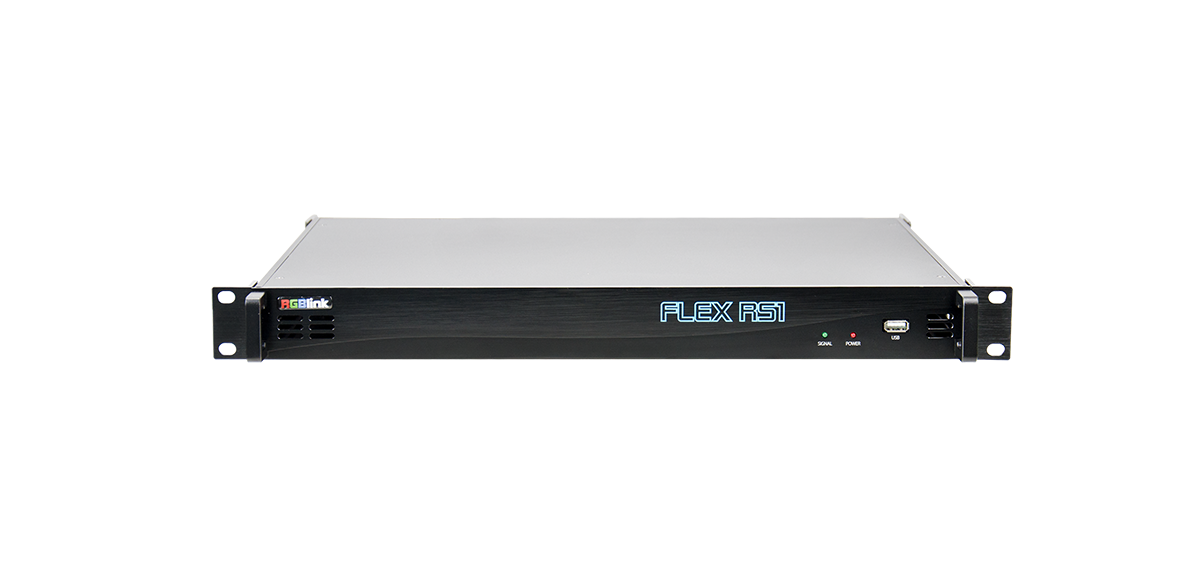

FLEX RS1 Advanced Rotation and Blending for Creative Display Design

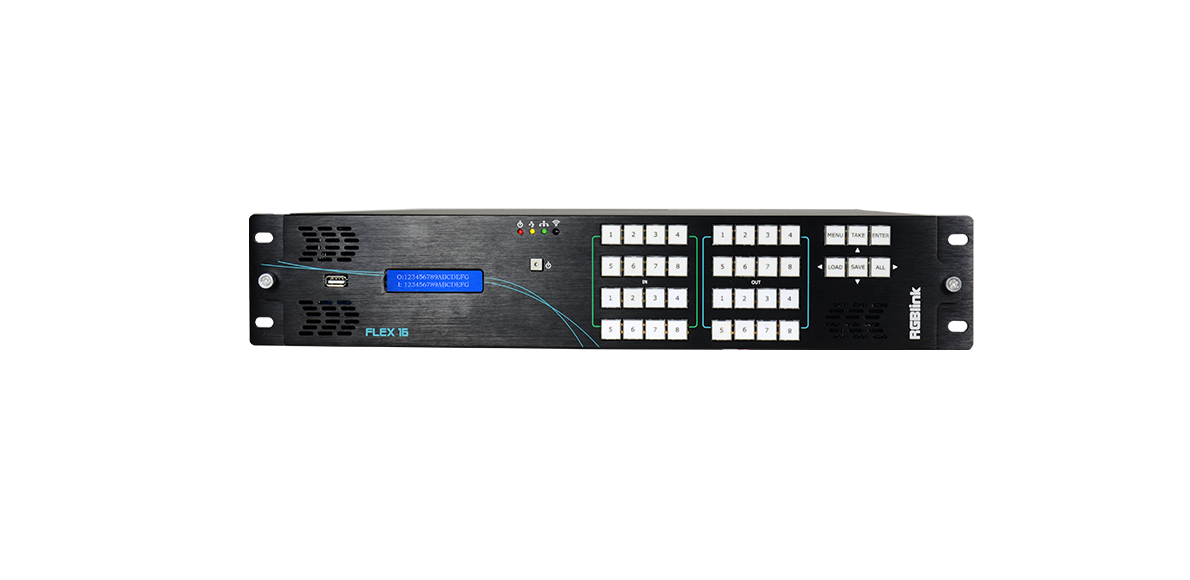

FLEX 16 16x16 Mixed Signal Matrix & Videowall Processor

PDF version

{{item.title}} {{item.zycontent}}
Lang Version Date Size Format
FLEX MINI Specification EN V1.5 12/20/2023 12:00:00 AM 730KB PDF
FLEX MINI User Manual EN V1.7 12/8/2023 12:00:00 AM 2.0MB PDF
FLEX MINI RoHS Certificate EN V1.0 4/10/2023 12:00:00 AM 455KB PDF
FLEX MINI FCC Certificate EN V1.0 4/10/2023 12:00:00 AM 445KB PDF
FLEX MINI CE LVD Certificate EN V1.0 4/10/2023 12:00:00 AM 447KB PDF
FLEX MINI CE EMC Certificate EN V1.0 4/10/2023 12:00:00 AM 458KB PDF
FLEX MINI is configurable and controllable from XPOSE.
XPOSE logo
Download the latest release of XPOSE HERE
There is no specific software for FLEX MINI
XPOSE & TAO APP & Firmware
While XTOOL updater is packaged with firmware, check for the latest version of XTOOLS and XPOSE HERE.
There is no specific firmware for FLEX MINI
Product Code Model Description
710-0009-01-0 FLEX 9 (MINI)
710-0018-01-0 FLEX 18 (MINI)
710-0036-01-0 FLEX 36 (MINI)
790-0009-01-0 Single 4K60 HDMI Input Module (seamless)
790-0009-02-0 Single 3G SDI Input Module (with audio) (seamless)
790-0009-03-0 Single 3G SDI Input Module (seamless)
790-0009-04-0 Single HDMI 1.3 Input Module (seamless)
790-0009-05-0 Single 1080P 70m HDBaseT Input Module (seamless)
790-0009-06-0 Single 1080P 100m HDBaseT Input Module (seamless)
790-0009-07-0 Single 4K60 HDMI Input Module (direct)
790-0009-10-0 Single 4K30 35m HDBaseT Input Module(direct)
790-0009-11-0 Single 4K30 70m HDBaseT Input Module(direct)
790-0009-12-0 Single 1080P DVI Input Module (seamless)
790-0009-13-0 Single DP 1.2 Input Module (seamless)
790-0009-21-0 Single 4K60 HDMI Output Module (seamless)
790-0009-23-0 Single 3G SDI Output Module (seamless)
790-0009-24-0 Single HDMI 1.3 Output Module (seamless)
790-0009-25-0 Single 1080P DVI Output Module (seamless)
790-0009-26-0 Single 1080P 70m HDBaseT Output Module (seamless)
790-0009-27-0 Single 1080P 100m HDBaseT Output Module (seamless)
790-0009-28-0 Single 4K60 HDMI Output Module (direct)
790-0009-31-0 Single 4K30 35m HDBaseT Output Module(direct)
790-0009-32-0 Single 4K30 70m HDBaseT Output Module(direct)
790-0009-34-0 Single DP 1.2 Output Module (seamless)
